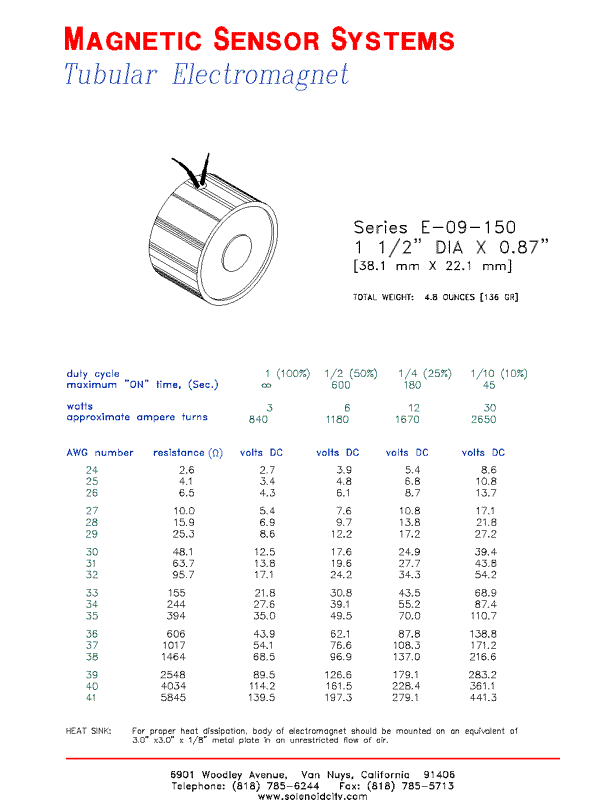

Magnetic Sensor Systems

Tubular Electromagnet

Series E-09-150

1.25" DIA X 0.87"

[38.1 mm DIA X 22,1 mm]

TOTAL WEIGHT: 4.8 OUNCES [136 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	600	180	45
watts	3	6	12	30
approximate ampere turns	840	1180	1670	2650

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
24	2.6	2.7	3.9	5.4	8.6
25	4.1	3.4	4.8	6.8	10.8
26	6.5	4.3	6.1	8.7	13.7
27	10.0	5.4	7.6	10.8	17.1
28	15.9	6.9	9.7	13.8	21.8
29	25.3	8.6	12.2	17.2	27.2
30	48.1	12.5	17.6	24.9	39.4
31	63.7	13.8	19.6	27.7	43.8
32	95.7	17.1	24.2	34.3	54.2
33	155	21.8	30.8	43.5	68.9
34	244	27.6	39.1	55.2	87.4
35	394	35.0	49.5	70.0	110.7
36	606	43.9	62.1	87.8	138.8
37	1017	54.1	76.6	108.3	171.2
38	1464	68.5	96.9	137.0	216.6
39	2548	89.5	126.6	179.1	283.2
40	4034	114.2	161.5	228.4	361.1
41	5845	139.5	197.3	279.1	441.3

HEAT SINK: For proper heat dissipation, body of electromagnet should be mounted on an equivalent of 3.0" x 3.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Electromagnet E-09-150 Page 1 Made in USA
