Bi-Directional Latching Solenoid S-73-3L Made in USA
|
Bi-Directional Latching Solenoid S-73-3L Made in USA
|
Bi-Directional Latching Operation |
|

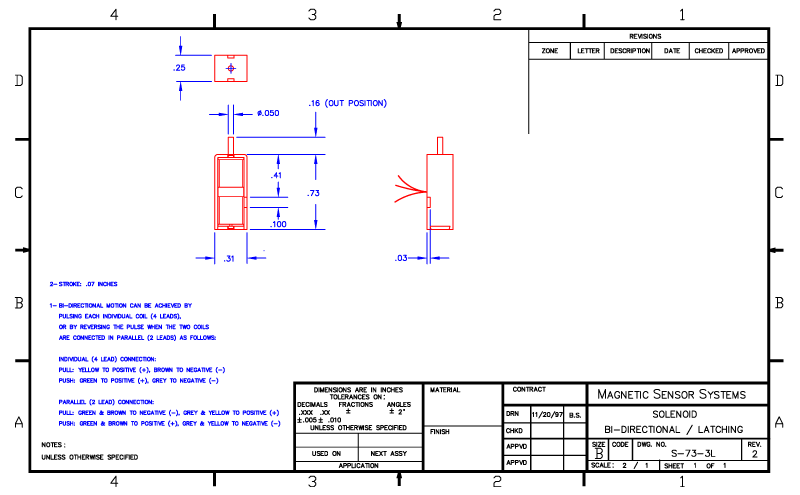

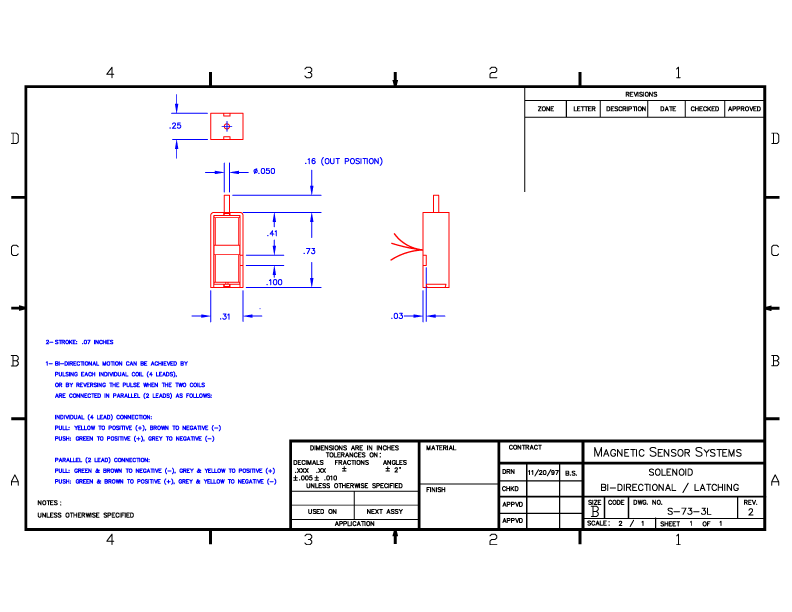

The S-73-3L bi-directional latching solenoid uses permanent-magnet holding force to retain the plunger at either end of travel after a brief electrical pulse. Because continuous coil power is not required while latched, it is suitable for applications where power consumption and heat generation must be minimized. A pulse to the appropriate coil—or a polarity reversal when the coils are connected for that operating method—moves and latches the plunger in the opposite direction. Review the product drawing above for wiring, pulse, force, stroke and dimensional requirements before integration. Download the S-73-3L PDF datasheet or contact Magnetic Sensor Systems for product-selection assistance. |
