Tubular Pull Type Solenoid     S-16-50            Page 2              Made in USA

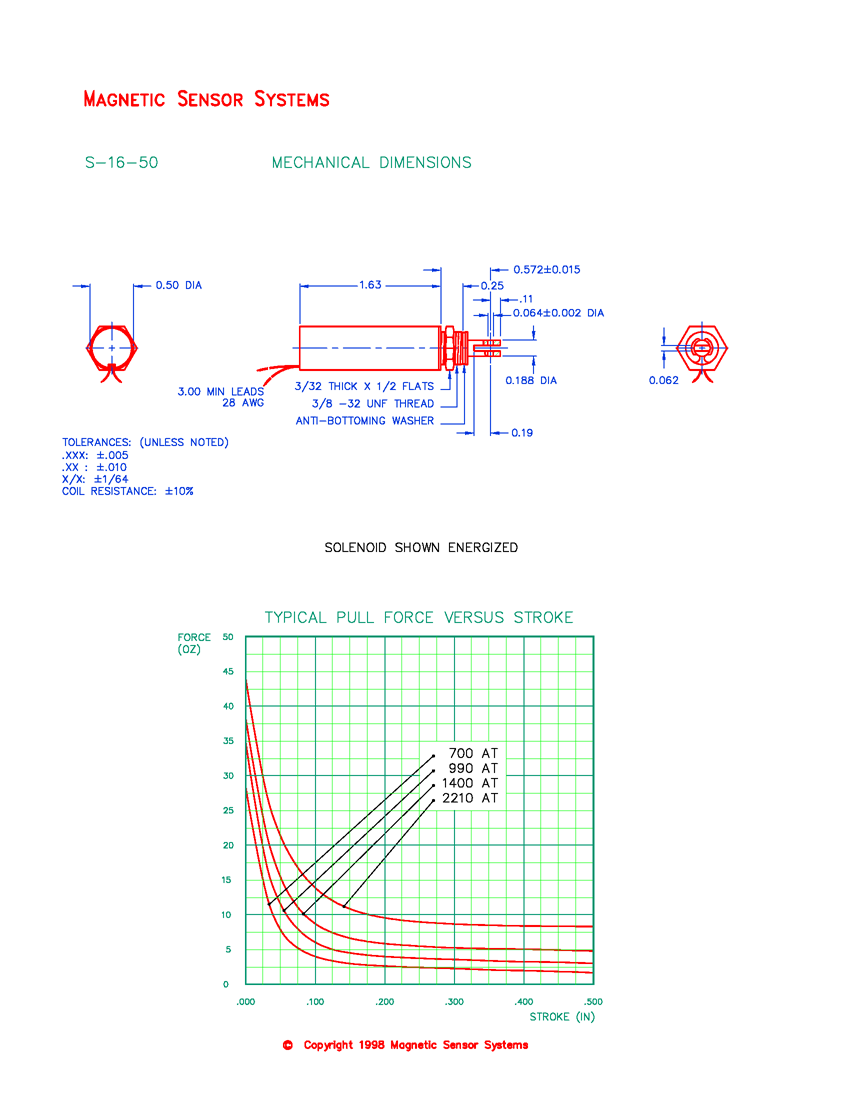

This page provides the mechanical outline, mounting information and force-versus-stroke performance curves for the S-16-50 tubular pull solenoid. Use these dimensional and performance details together with the electrical, winding and duty-cycle specifications on Page 1 when selecting and integrating the solenoid. A complete PDF data sheet and downloadable 3D STEP model are also available.
