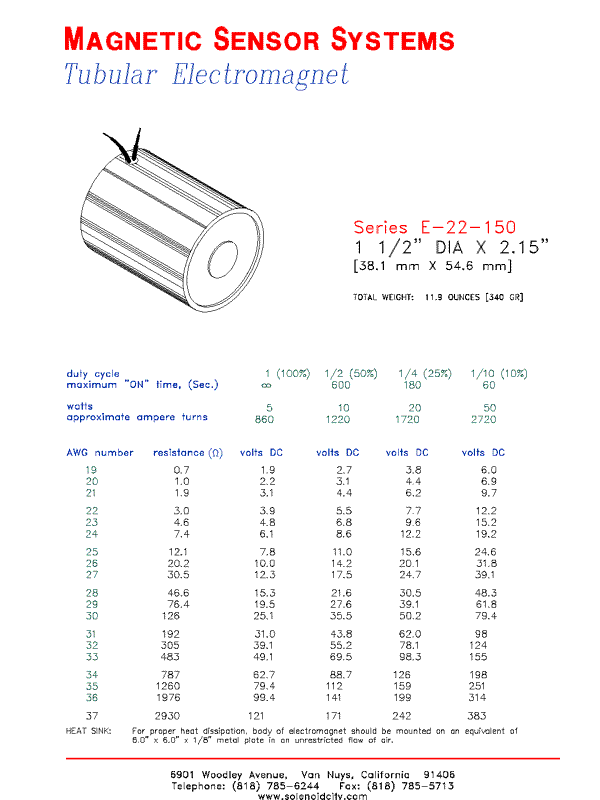

Magnetic Sensor Systems

Tubular Electromagnet

Series E-22-150

1.50" DIA X 2.15"

[38.1 mm DIA X 54.6 mm]

TOTAL WEIGHT: 11.9 OUNCES [340 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	600	180	60
watts	5	10	20	50
approximate ampere turns	860	1220	1720	2720

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
19	0.7	1.9	2.7	3.8	6.0
20	1.0	2.2	3.1	4.4	6.9
21	1.9	3.1	4.4	6.2	9.7
22	3.0	3.9	5.5	7.7	12.2
23	4.6	4.8	6.8	9.6	15.2
24	7.4	6.1	8.6	12.2	19.2
25	12.1	7.8	11.0	15.6	24.6
26	20.2	10.0	14.2	20.1	31.8
27	30.5	12.3	17.5	24.7	39.1
28	46.6	15.3	21.6	30.5	48.3
29	76.4	19.5	27.6	39.1	61.8
30	126	25.1	35.5	50.2	79.4
31	192	31.0	43.8	62.0	98.0
32	305	39.1	55.2	78.1	124
33	483	49.1	69.5	98.3	155
34	787	62.7	88.7	126	198
35	1260	79.4	112	159	251
36	1976	99.4	141	199	314
37	2930	121	171	242	383

HEAT SINK: For proper heat dissipation, body of electromagnet should be mounted on an equivalent of 6.0" x 6.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Electromagnet E-22-150 Page 1 Made in USA

Tubular Electromagnet

19

0.7

1.9

2.7

3.8

6.0

20

1.0

2.2

3.1

4.4

6.9

21

1.9

3.1

4.4

6.2

9.7

22

3.0

3.9

5.5

7.7

12.2

23

4.6

4.8

6.8

9.6

15.2

24

7.4

6.1

8.6

12.2

19.2

25

12.1

7.8

11.0

15.6

24.6

26

20.2

10.0

14.2

20.1

31.8

27

30.5

12.3

17.5

24.7

39.1

28

46.6

15.3

21.6

30.5

48.3

29

76.4

19.5

27.6

39.1

61.8

30

126

25.1

35.5

50.2

79.4

31

192

31.0

43.8

62.0

98.0
