Proportional Power Driver Module - Voltage Controlled
PWM950

Solenoid Driver SPW950

PWM950 Module is designed to enable the user to vary the voltage across solenoids or other devices.

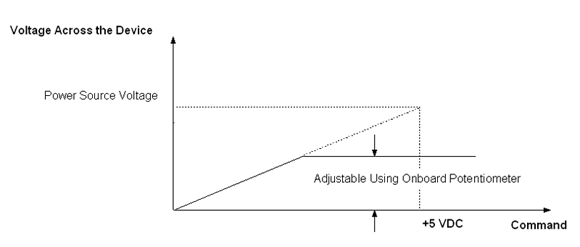

The Pulse Width Modulation (PWM) is proportional to the input control voltage. The maximum pulse width could be adjusted using an onboard trim potentiometer.

To apply the control voltage, a DC power supply could be used.

This module is used for propotional control of solenoids or similar devices.

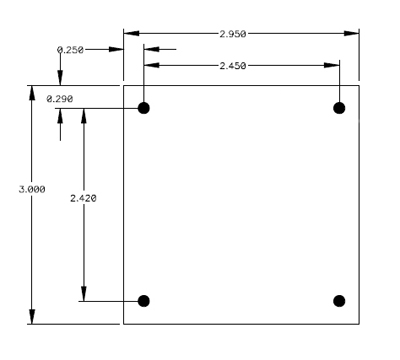

Solenoid Driver PWM950 Dimensions
Parameter Min Typical Max Units
Supply Input Voltage 9   50 VDC
Peak Current     15 A
RMS Current *   4   A
Command (Trigger) Range 0   5 VDC
Operating Temperature 0   50 Deg C
Storage Temperature -40   125 Deg C
PWM Frequency   2   KHz
