Tubular Low Profile Push/Pull Solenoid     S-05-125            Page 2              Made in USA

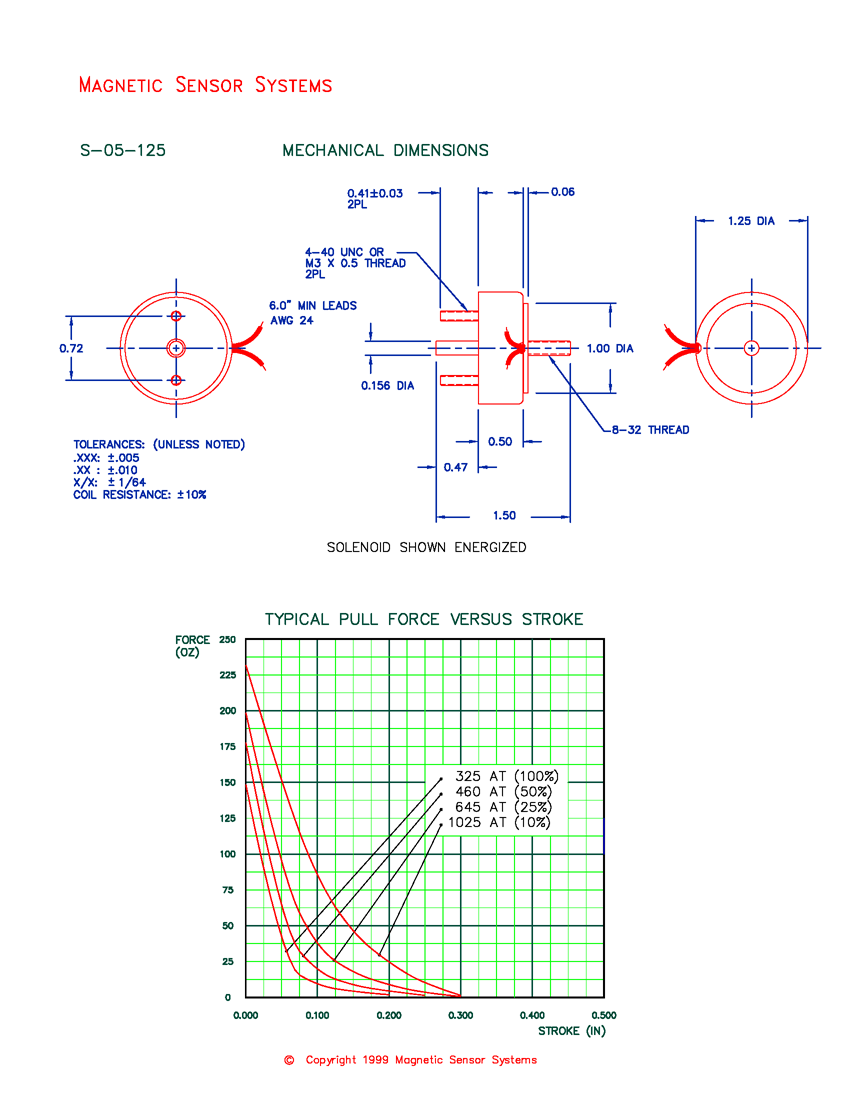

This page provides the mechanical dimensions, mounting information and force-versus-stroke performance data for the S-05-125 low-profile push/pull solenoid. Use these details together with the electrical, winding and duty-cycle specifications on Page 1 when selecting and integrating the solenoid. A complete PDF datasheet is also available.
