Tubular Low Profile Clapper Solenoid     S-08-54            Page 2              Made in USA

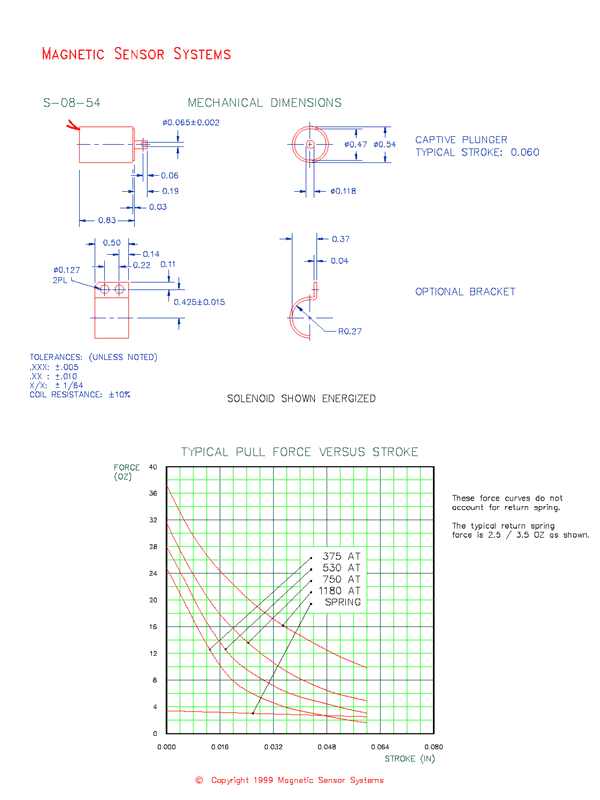

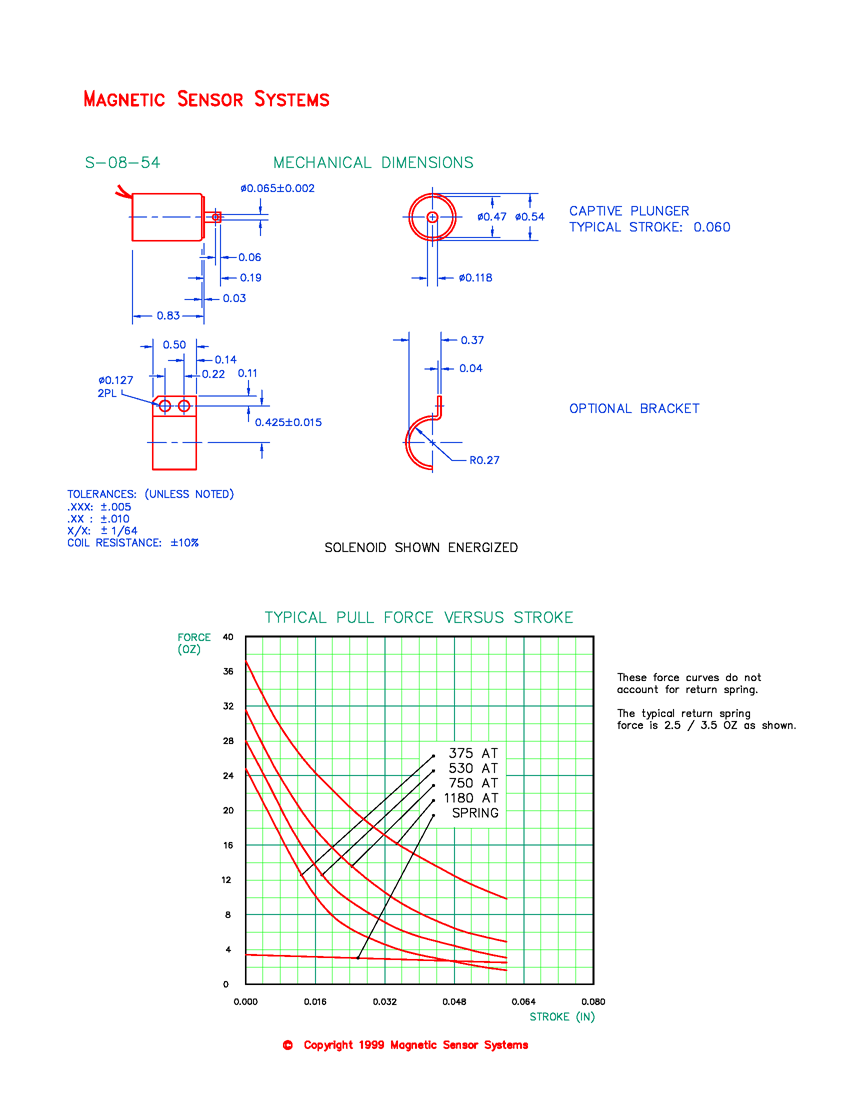

This page provides the mechanical dimensions, mounting information and force-versus-stroke performance data for the S-08-54 low-profile clapper solenoid. Use these details together with the electrical, winding and duty-cycle specifications on Page 1 when selecting and integrating the solenoid. A complete PDF datasheet is also available.
