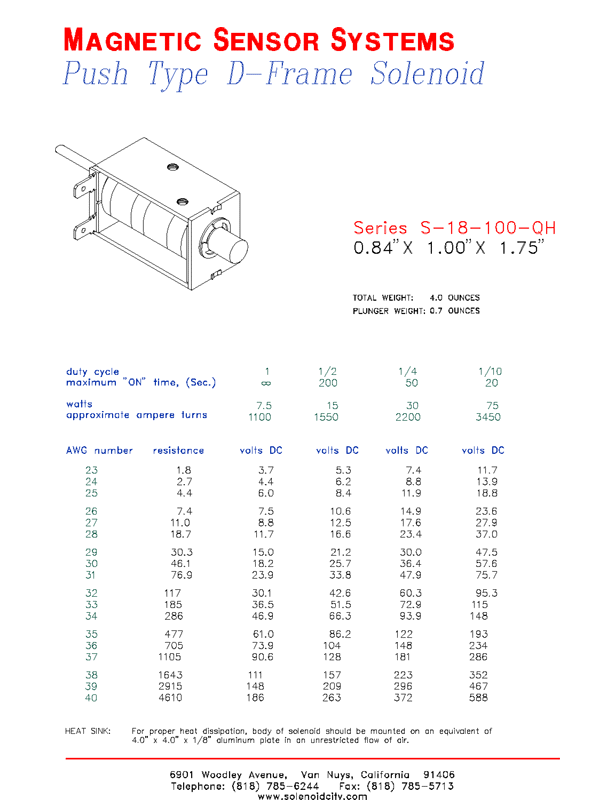

Push Type Open D-Frame Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

200

50

20

watts

7.5

15

30

75

approximate ampere turns

1100

1550

2200

3450

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

23

1.8

3.7

5.3

7.4

11.7

24

2.7

4.4

6.2

8.8

13.9

25

4.4

6.0

8.4

11.9

18.8

26

7.4

7.5

10.6

14.9

23.6

27

11.0

8.8

12.5

17.6

27.9

28

18.7

11.7

16.6

23.4

37.0

29

30.3

15.0

21.2

30.0

47.5

30

46.1

18.2

25.7

36.4

57.6

31

76.9

23.9

33.8

47.9

75.7

32

117

30.1

42.6

60.3

95.3

33

185

36.5

51.5

72.9

115

34

286

46.9

66.3

93.9

148

35

477

61.0

86.2

122

193

36

705

73.9

104

148

234

37

1105

90.6

128

181

286

38

1643

111

157

223

352

39

2915

148

209

296

467

40

4610

186

263

372

588

Open-Frame Solenoid Features and Applications

Key Features

The S-18-100-QH is a push-type open D-frame linear solenoid measuring 0.84 x 1.00 x 1.75 in [21.3 x 25.4 x 44.5 mm]. The tables above provide duty-cycle, maximum on-time, power, coil resistance and DC voltage options for selecting a suitable winding and operating condition.

Typical Applications

This open-frame push solenoid may be considered for latches, gates, release mechanisms, dispensing equipment, office machines, sorting systems, industrial controls and other short-to-moderate-stroke linear actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For additional engineering information, see the mechanical dimensions and force curves, PDF datasheet and 3D STEP model, or contact Magnetic Sensor Systems.
