Rotary Solenoid     R-09-150-CWN            Page 2              Made in USA

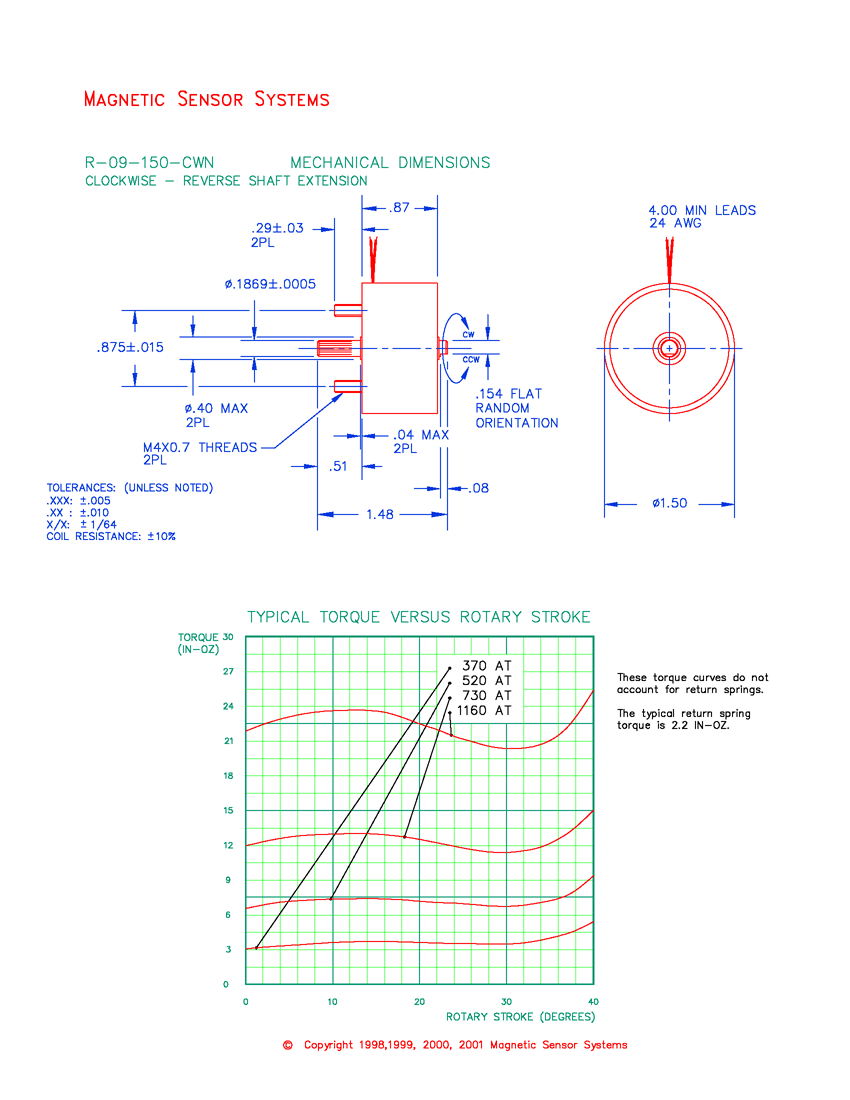

This page provides the mechanical dimensions and rotary performance information for the R-09-150-CWN clockwise rotary solenoid with reverse shaft extension. Use these details together with the electrical, winding and duty-cycle specifications on Page 1 when selecting and integrating the solenoid. A complete PDF datasheet is also available.
