Rotary Solenoid     R-10-200-CCWN            Page 2              Made in USA

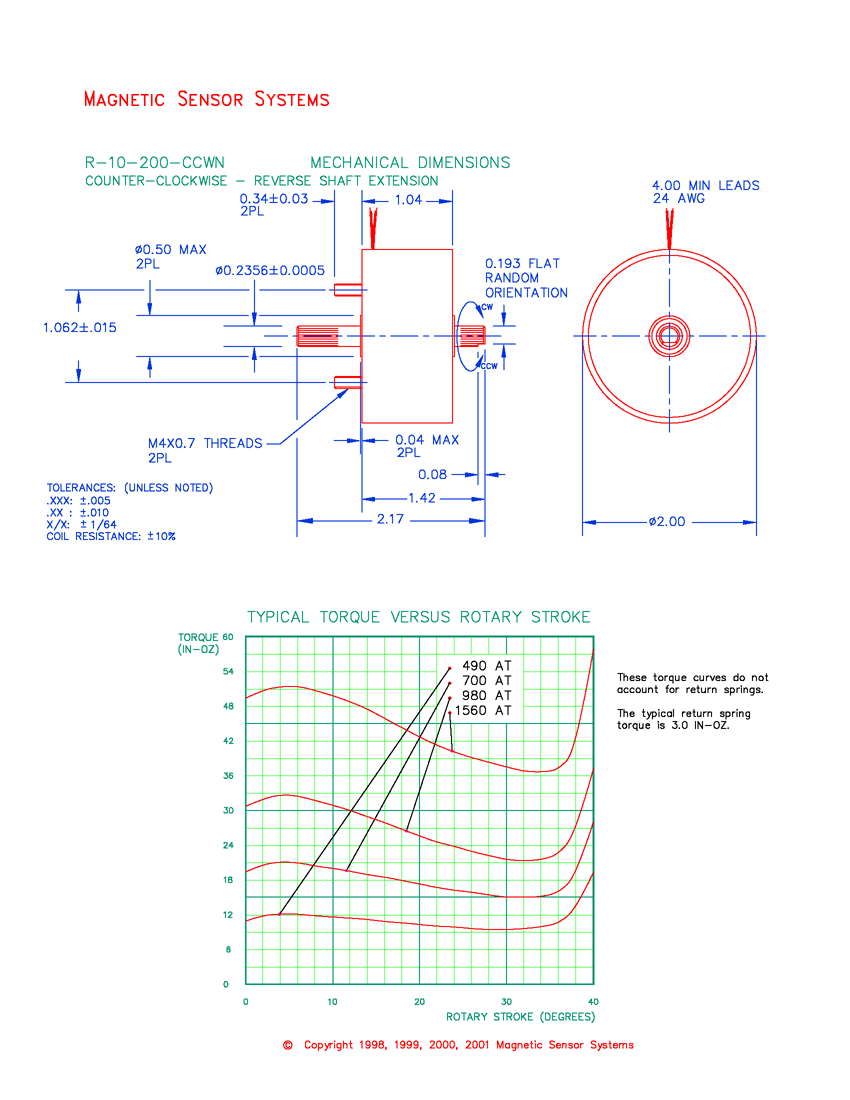

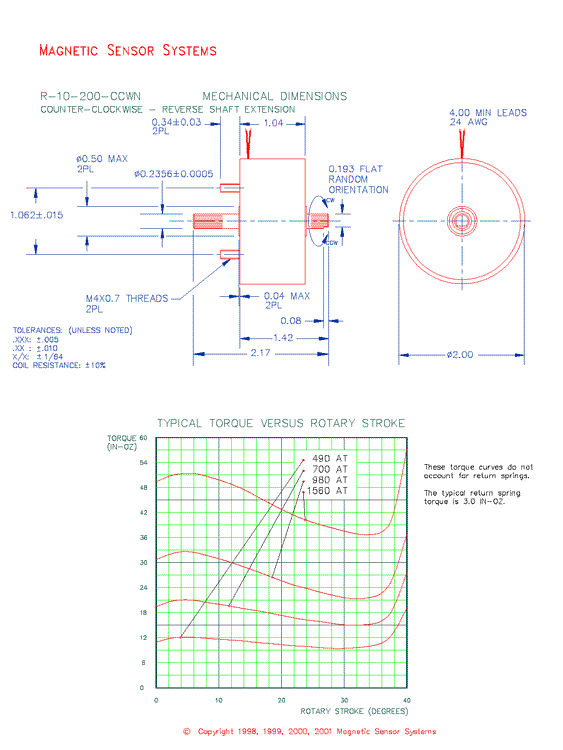

This page provides the mechanical dimensions and rotary performance information for the R-10-200-CCWN counterclockwise rotary solenoid with reverse shaft extension. Use these details together with the electrical, winding and duty-cycle specifications on Page 1 when selecting and integrating the solenoid. A complete PDF datasheet is also available.
