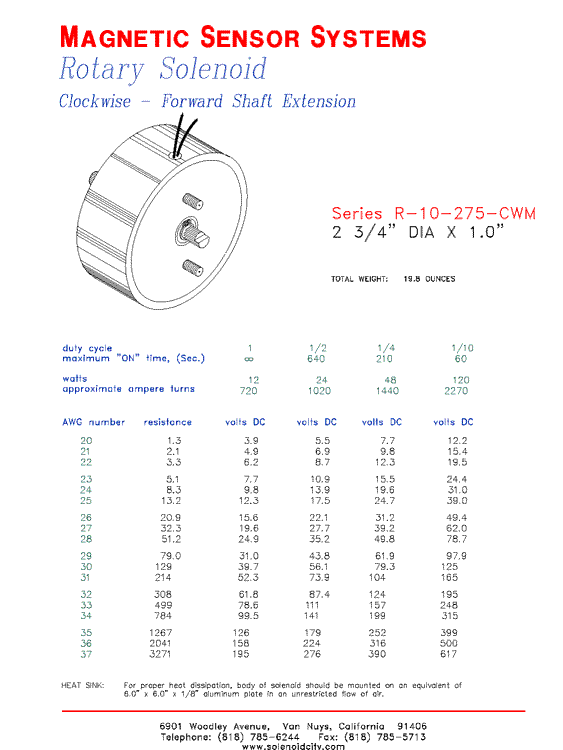

Rotary Solenoid
Clockwise - Forward Shaft Extension

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

640

210

60

watts

12

24

48

120

approximate ampere turns

720

1020

1440

2270

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

20

1.3

3.9

5.5

7.7

12.2

21

2.1

4.9

6.9

9.8

15.4

22

3.3

6.2

8.7

12.3

19.5

23

5.1

7.7

10.9

15.5

24.4

24

8.3

9.8

13.9

19.6

31.0

25

13.2

12.3

17.5

24.7

39.0

26

20.9

15.6

22.1

31.2

49.4

27

32.3

19.6

27.7

39.2

62.0

28

51.2

24.9

35.2

49.8

78.7

29

79.0

31.0

43.8

61.9

97.9

30

129

39.7

56.1

79.3

125

31

214

52.3

73.9

104

165

32

308

61.8

87.4

124

195

33

499

78.6

111

157

248

34

784

99.5

141

199

315

35

1267

126

179

252

399

36

2041

158

224

316

500

37

3271

195

276

390

617

R-10-275-CWM Rotary Solenoid Features and Applications

Key Features

Clockwise 40-degree limited-angle rotary motion; forward shaft extension; 2.750 in (69.9 mm) diameter; 1.00 in (25.4 mm) body length; 19.8 oz (561 g) total weight; four duty-cycle ratings; and multiple coil windings for a range of DC operating voltages.

Typical Applications

The R-10-275-CWM may be considered for indexing, sorting, shutters, diverters, locking mechanisms, printing equipment, instrumentation and other limited-angle rotary actuation. Verify torque, rotation angle, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical dimensions and performance information, see additional R-10-275-CWM data or download the PDF datasheet. For application assistance, contact Magnetic Sensor Systems.
