Magnetic Sensor Systems

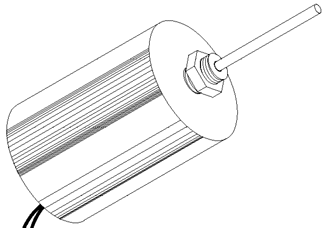

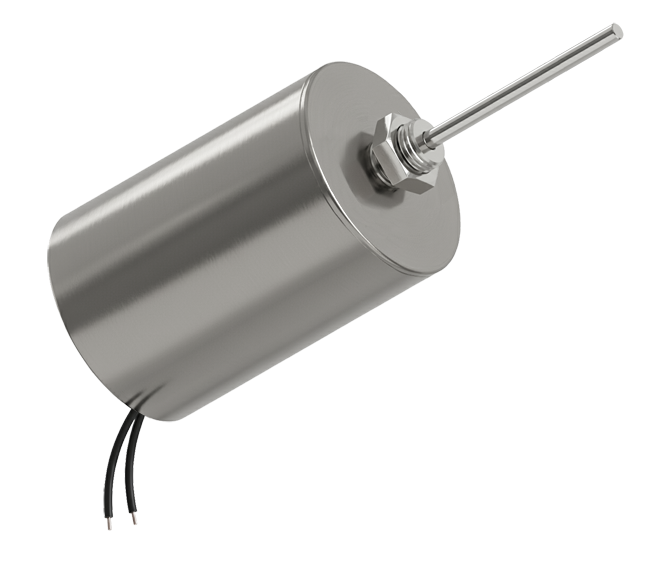

Push Type Tubular Solenoid

Series S-29-200-H

2.0" DIA X 2.85"

[50.8 mm DIA X 72.4 mm]

TOTAL WEIGHT: 31.7 OUNCES [900 GR]

PLUNGER WEIGHT: 4.3 OUNCES [122 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	840	270	90
watts	18	36	72	180
approximate ampere turns	2400	3400	4800	7600

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
18	1.5	5.1	7.3	10.3	16.2
19	2.4	6.4	9.1	12.9	20.4
20	3.7	8.0	11.4	16.0	25.4
21	5.8	10.2	14.5	20.4	32.3
22	9.3	12.8	18.2	25.7	40.6
23	15	16.3	23.1	32.7	51.7
24	24.3	20.6	29.1	41.1	65.1
25	38.1	26.2	37.2	52.5	83.0
26	60.7	33.0	46.8	66.0	105
27	94.7	40.9	58.0	81.9	130
28	155	53.2	75.4	106	168
29	238	65.9	93.3	132	209
30	398	84.5	120	169	268
31	625	106	151	213	337
32	965	132	187	264	418
33	1595	171	242	342	541
34	2725	223	315	445
35	4229	278	393	555

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 6.0" x 6.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

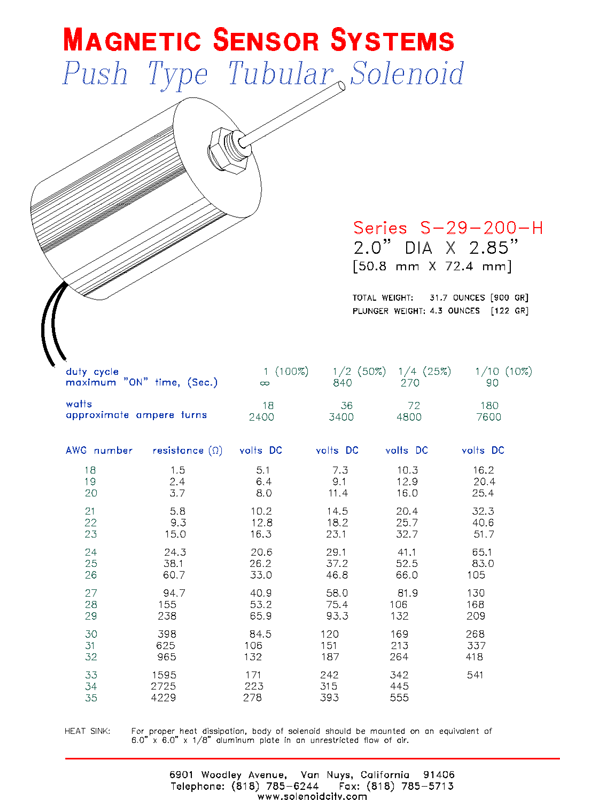

Tubular Push Type Solenoid S-29-200-H Page 1 Made in USA

Push Type Tubular Solenoid

18

1.5

5.1

7.3

10.3

16.2

19

2.4

6.4

9.1

12.9

20.4

20

3.7

8.0

11.4

16.0

25.4

21

5.8

10.2

14.5

20.4

32.3

22

9.3

12.8

18.2

25.7

40.6

23

15

16.3

23.1

32.7

51.7

24

24.3

20.6

29.1

41.1

65.1

25

38.1

26.2

37.2

52.5

83.0

26

60.7

33.0

46.8

66.0

105

27

94.7

40.9

58.0

81.9

130

28

155

53.2

75.4

106

168

29

238

65.9

93.3

132

209

30

398

84.5

120

169

268
