Open C-Frame Push Type Solenoid     S-17-85-QH            Page 2              Made in USA

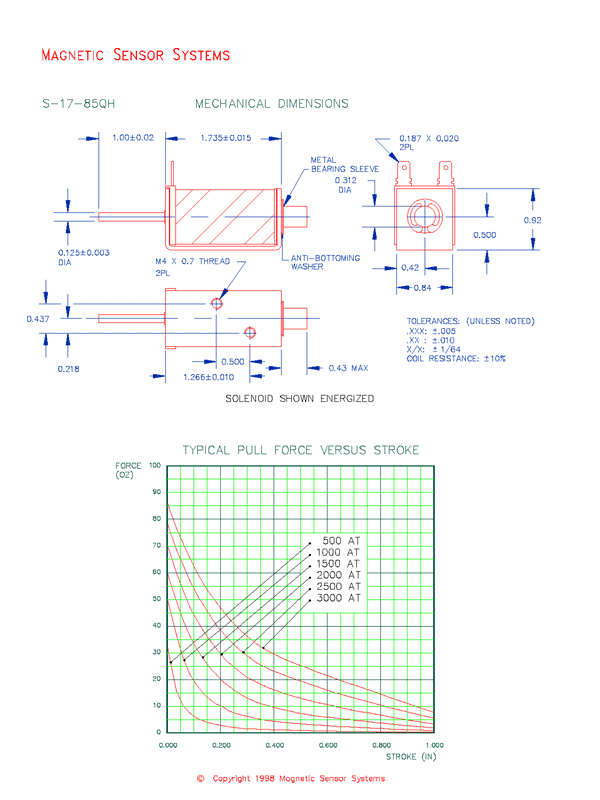

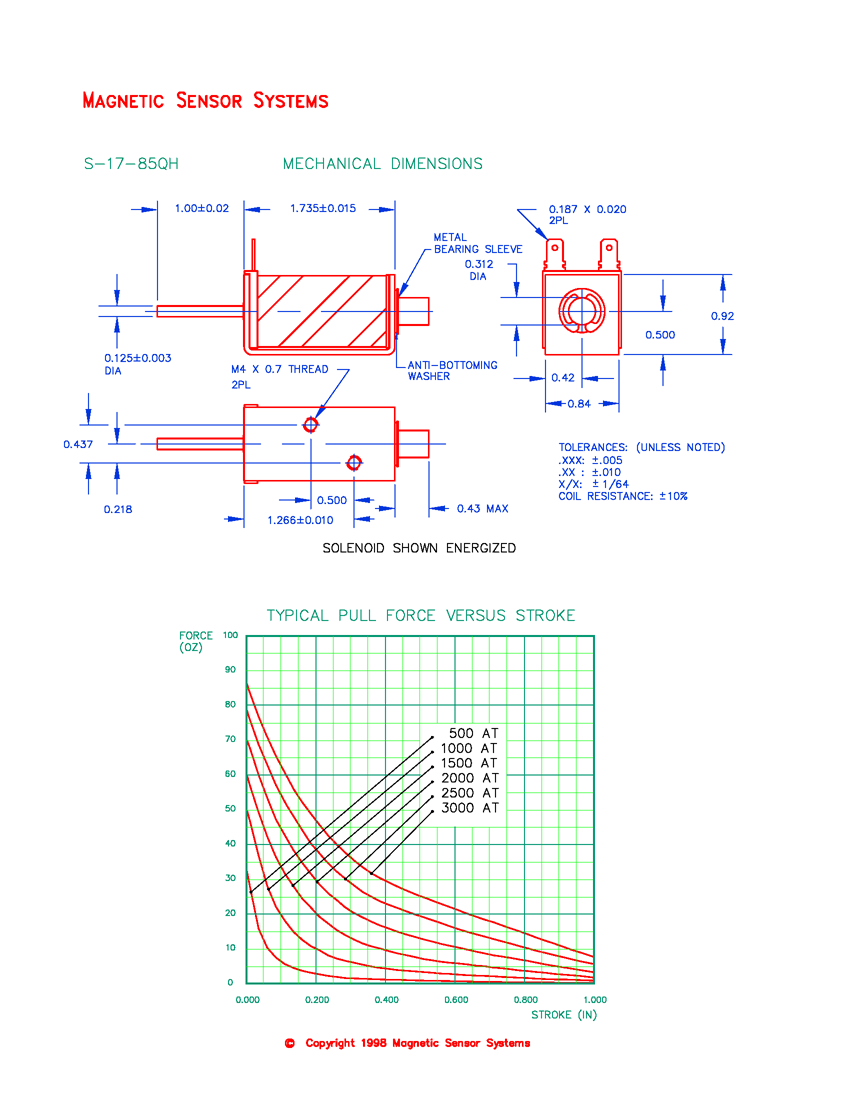

This page provides the mechanical outline, mounting details and force-versus-stroke performance curves for the S-17-85-QH open C-frame push solenoid. Use these details together with the duty-cycle, coil resistance and DC voltage specifications when selecting a winding and integrating the solenoid into an assembly.
