Open D-Frame Pull Type Solenoid     S-18-100            Page 2              MaMade in USA

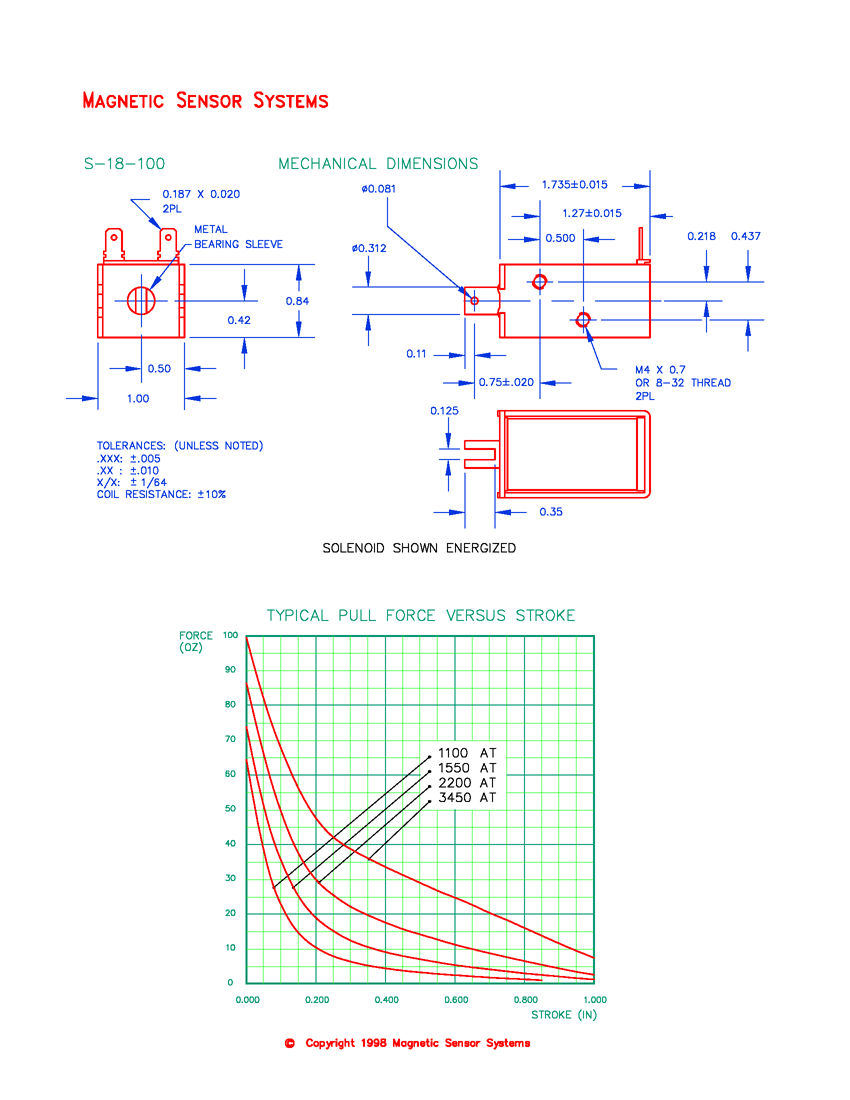

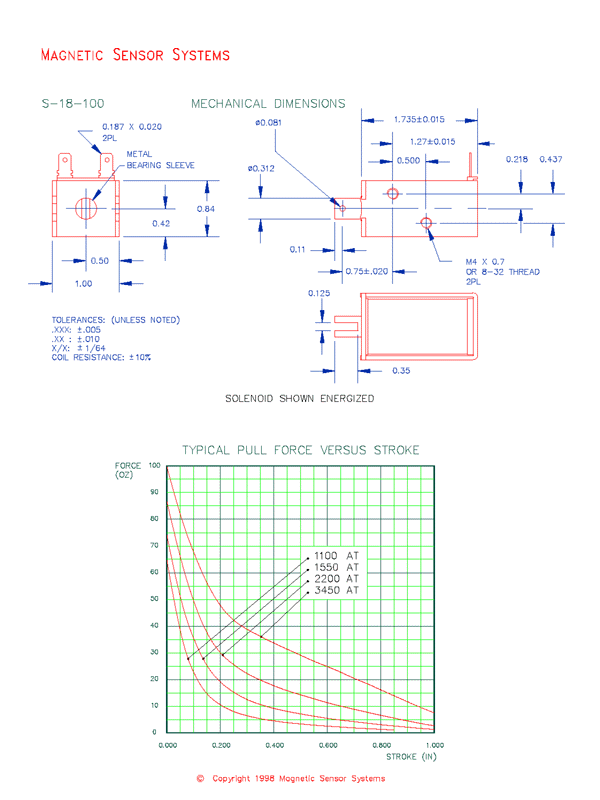

This page provides the mechanical outline, mounting details and force-versus-stroke performance curves for the S-18-100 open D-frame pull solenoid. Use these details together with the duty-cycle, coil resistance and DC voltage specifications when selecting a winding and integrating the solenoid into an assembly.
