Open D-Frame Pull Type Solenoid     S-20-150            Page 2              Made in USA

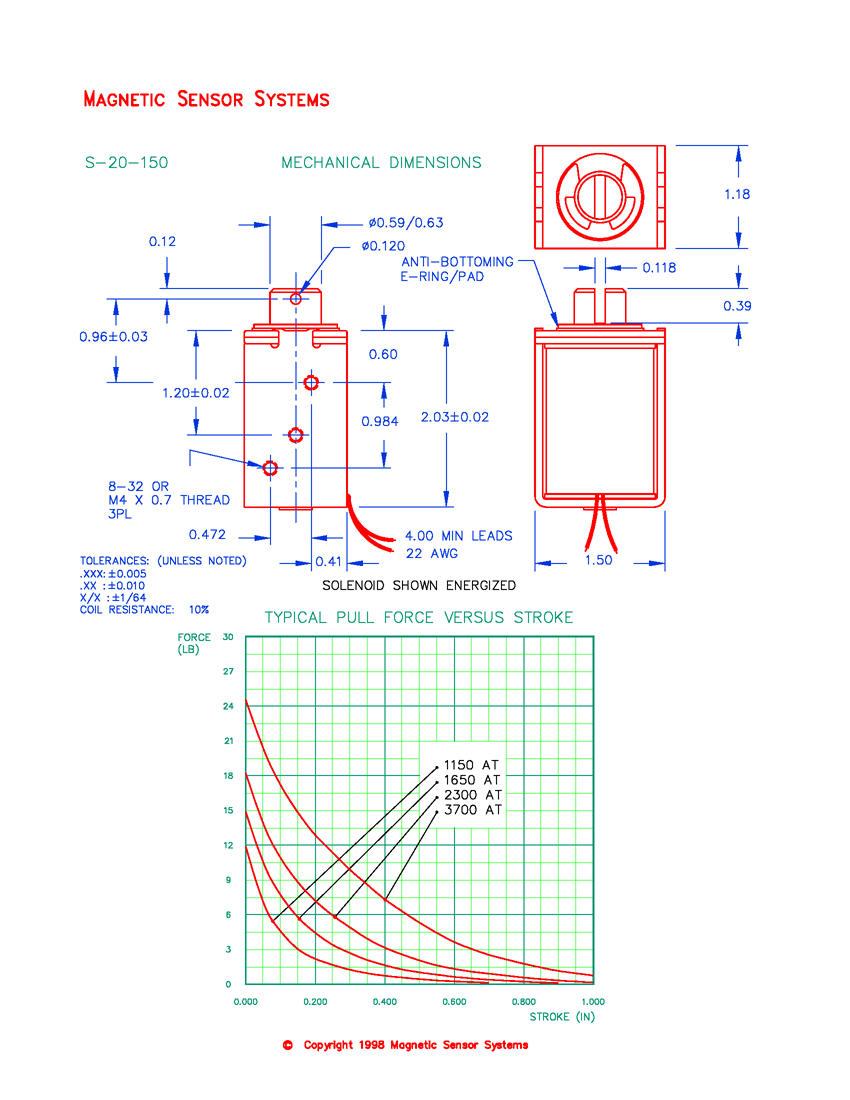

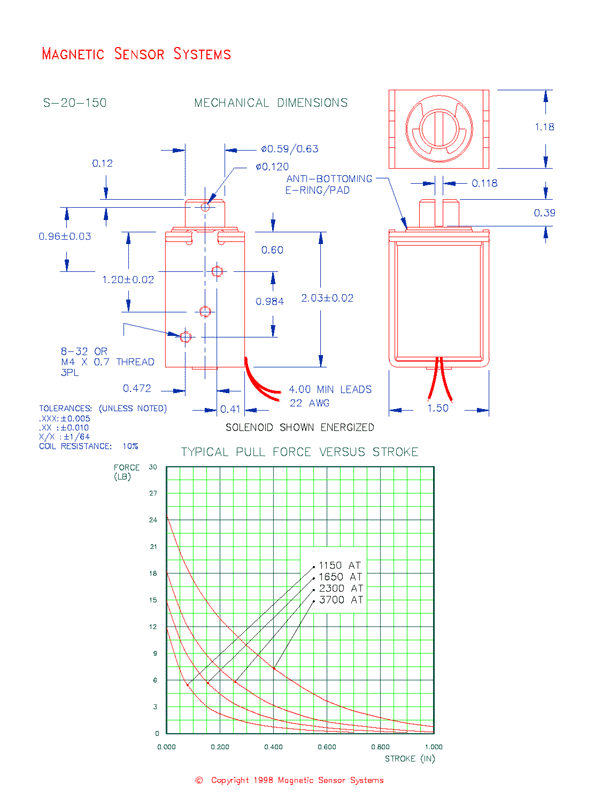

This page provides the mechanical outline, mounting details and force-versus-stroke performance curves for the S-20-150 open D-frame pull solenoid. Use these details together with the duty-cycle, coil resistance and DC voltage specifications when selecting a winding and integrating the solenoid into an assembly.
